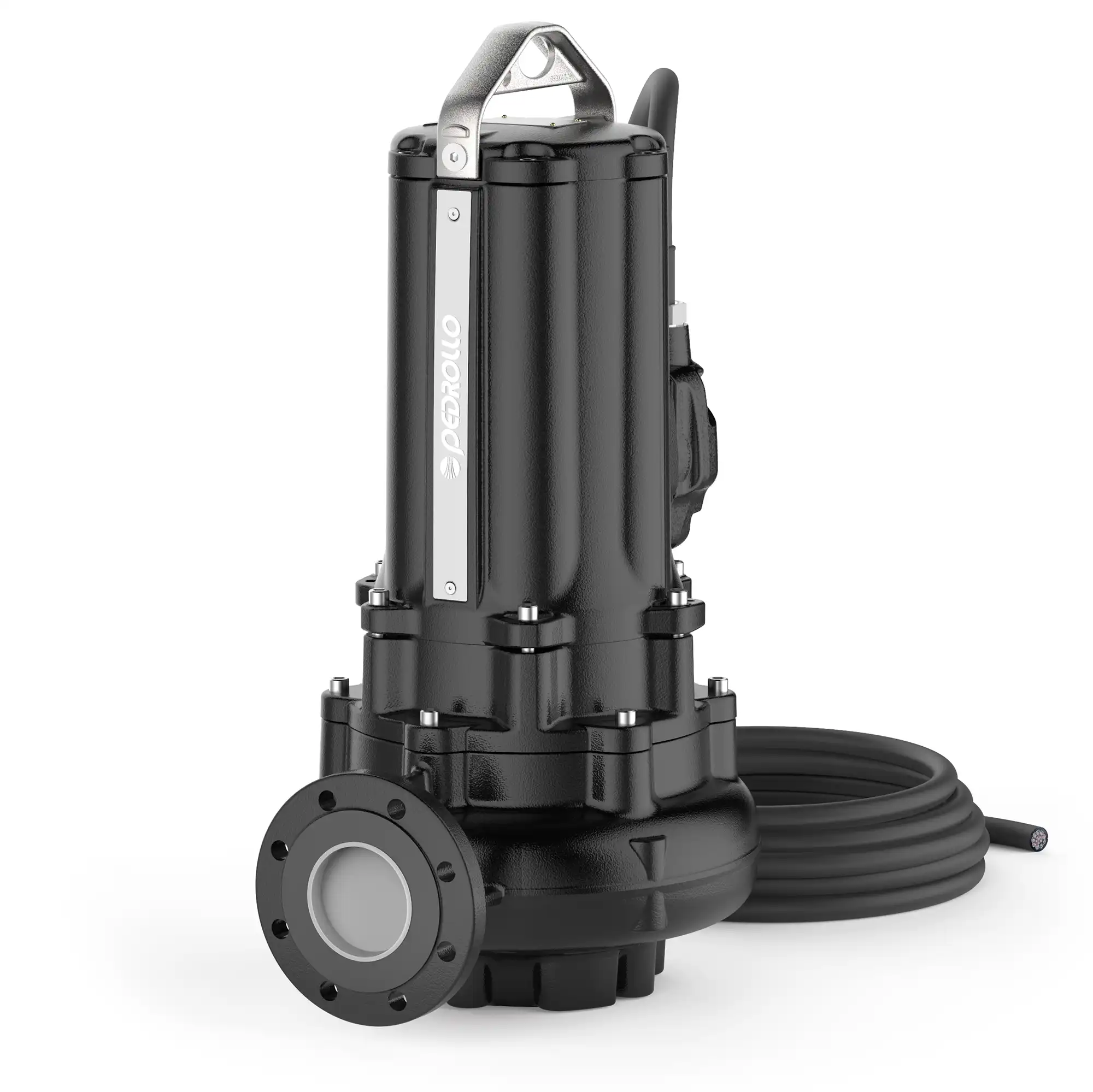

VXC4 High Flow

Submersible sewage pumps

The VXC4 series is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resistance, and durability. Equipped with a VORTEX-type impeller, the pumps are designed to drain sewage, sludgemixed water, and activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.

Flow rate	up to 5000 l/min (300 m³/h)
Head up	up to 22.5 m
Liquid temperature	up to +40° C
Capable of processing suspended solids	up to Ø 80 mm
Maximum operating depth below water level	up to 10 m (with an appropriately sized power cable)
Minimum immersion for continuous service	must not rise more than 290 mm
Motor	4 poles
Ingress protection rating	IP 68
